Module feedstuff mill ЛПК-15

Purpose:

Module feedstuff mill is designed to produce loose feed with 15 t/h of capacity and to weighing and packing finished feed into bags of 20, 30 or 520 kg.

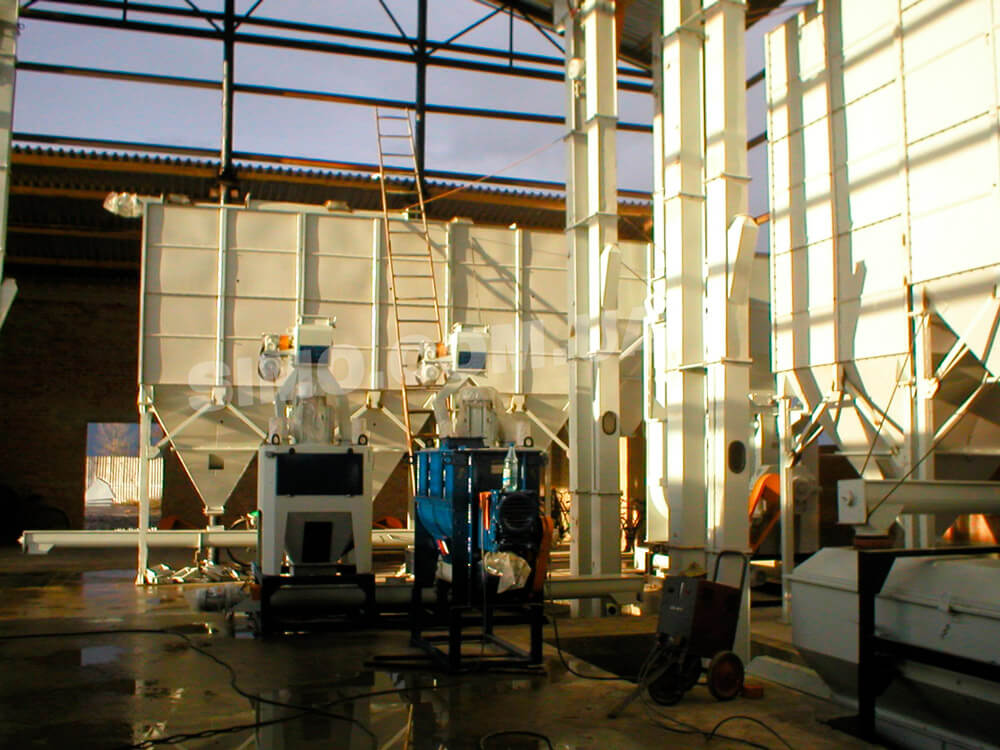

Module feedstuff mill is supplied as assembled modules, also provided packed transport equipment (bucket elevators and augers), staircases, service areas, cable and wire products.

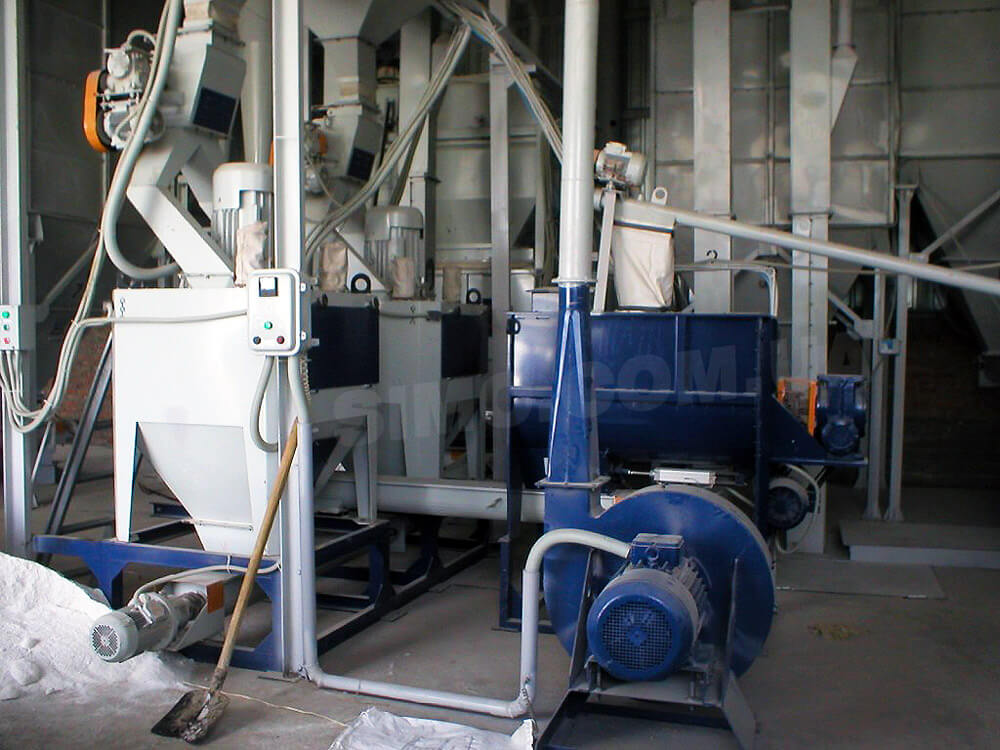

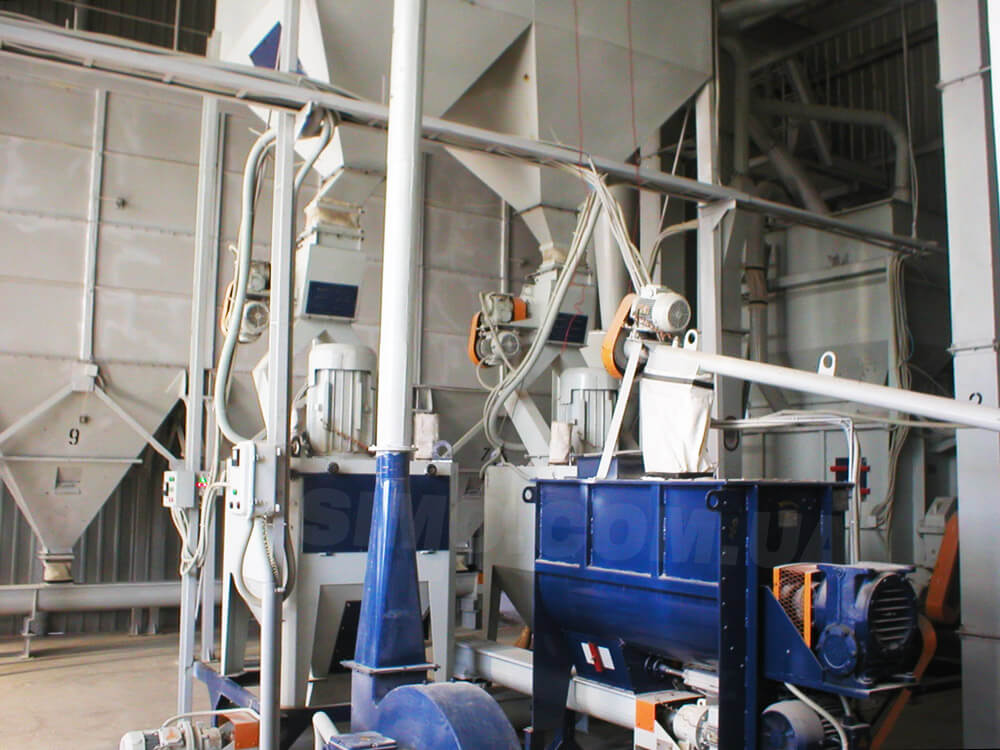

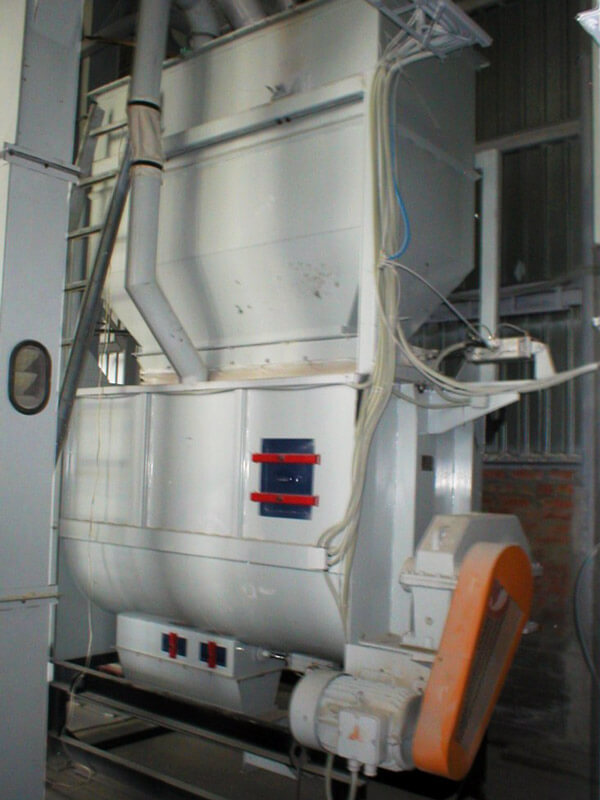

These modules are ready to be mounted with special technological equipment, namely – module of hoppers, hoppers output module, module of scales, module of hopper over the mixer, module of mixer, grinding and packing module, operator's room.

This technology needs grain and schrot hoppers, augers with loading funnels for small batches of components, hatch for manual additional loading of components (into the mixer).

Advantage of such kitting is good complete set and high assembly readiness. The modules are joined together by prepared places according to the wiring diagram. Then they joining with ready staircases, fences, service areas, bucket elevators, augers and cable wires. Checking the equipment switching and setting up the computer control system of the line takes place from the operator's room.

Module feedstuff mill includes equipment which is often using at the large feedstuff plants and mills. This fact lets they produce the feed with 95 % of homogeneity.

Some advantages of the Module feedstuff mill of SIC “AGRO-SIMO-MASHBUD” are:

• actually implemented modularity (as opposed to block layout);

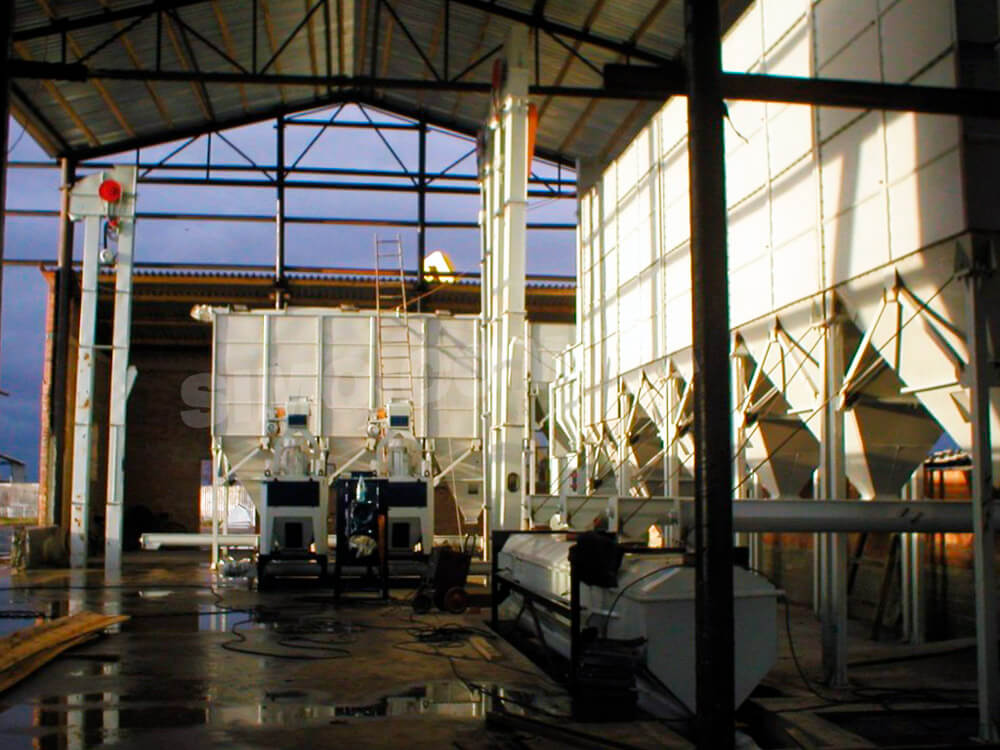

• steel frame structure and that means all equipment is fastened on steel frames. It lets to avoid to capital construction costs and reduce the area for placement;
• it's completed with industry equipment for large feedstuff mills;;

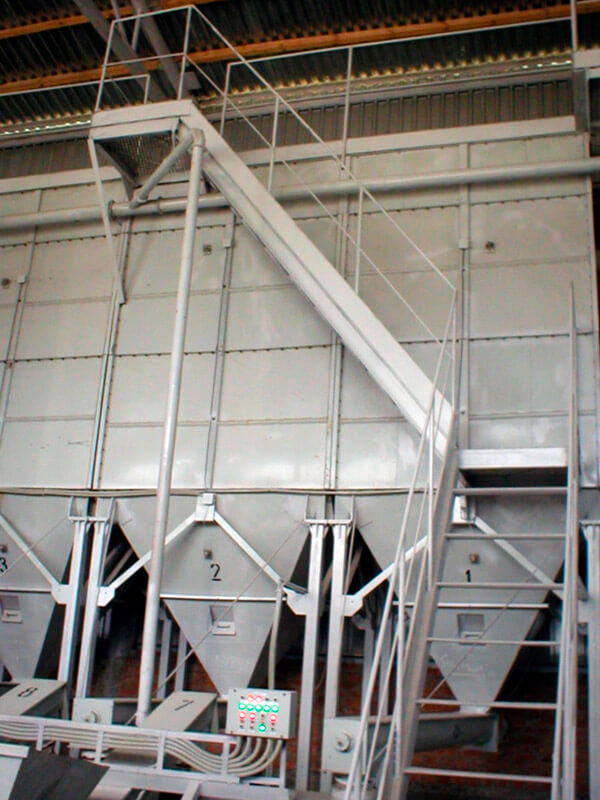

• hoppers for raw product inside module;
• comfortable computer control system lets to manage all equipment independently and work round-the-clock for a week;
• the possibility of placement without stopping the existing production;
• transportation in standard ordinary containers and lorries by sea, road or railway;
• quick installation, because it just needs to combine ready-made modules;
• installation and commissioning takes 5-6 days (if the area for mill and place for intake bin and bucket elevator shoe are ready).
