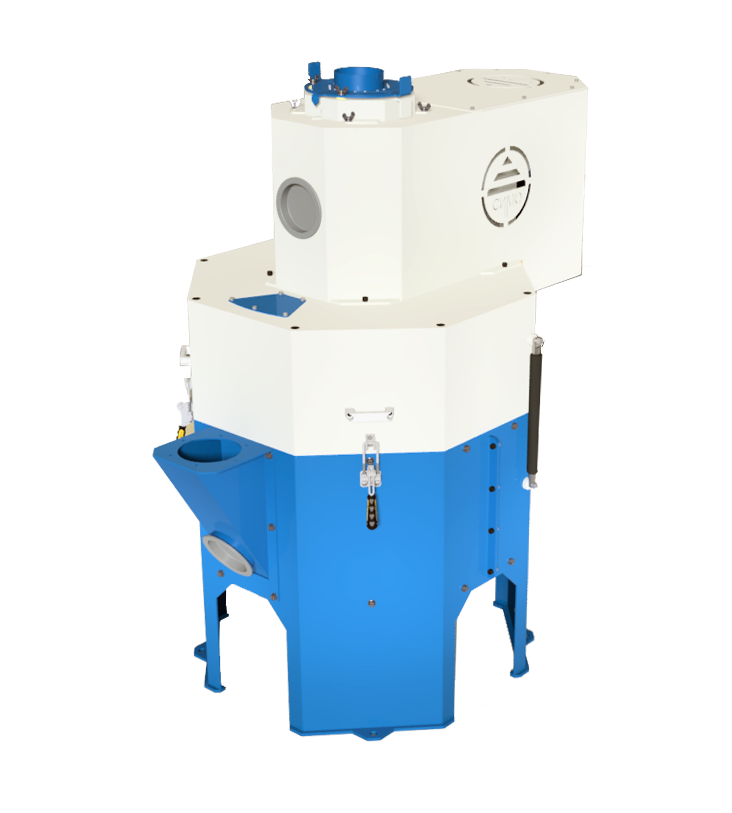

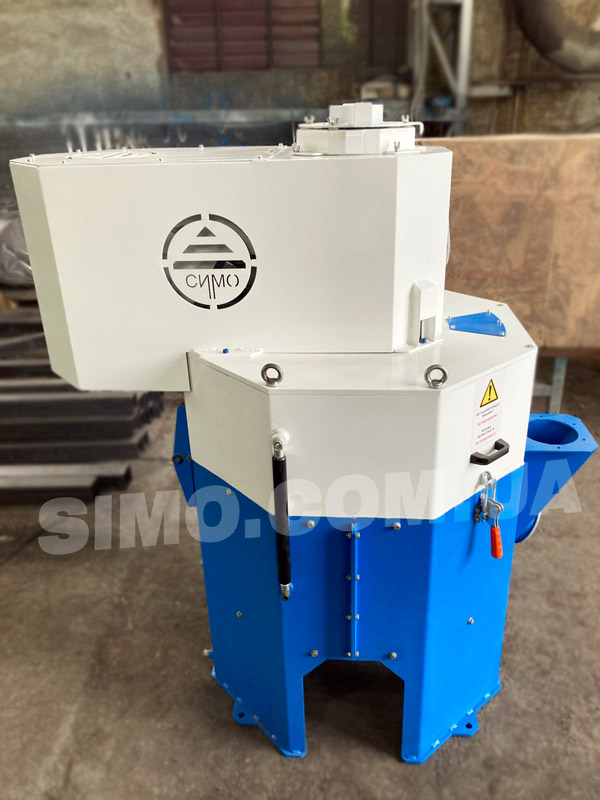

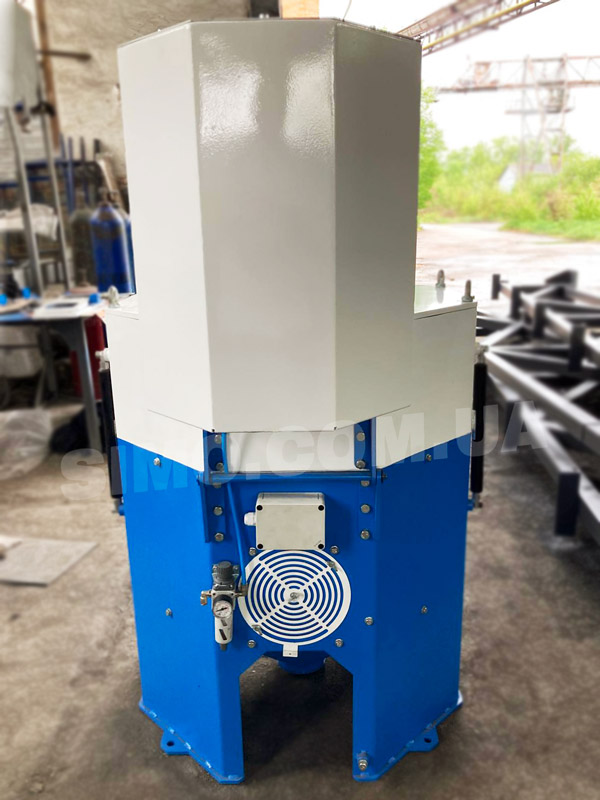

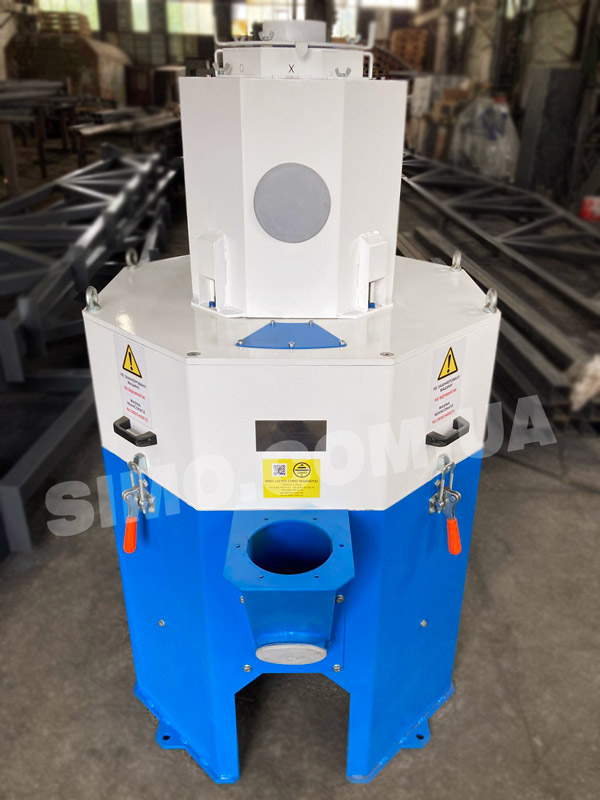

Impact Dehuller СІМО ЦШС-3

The impact dehuller is designed for high performance oats, spelled, soybeans and sunflower grain hulling with simultaneous shaking and winnowing a part of fibres and hull, for corn crushing to select germinable seeds.

Purpose of equipment:

The impact dehuller is designed for high performance oats, spelled, soybeans and sunflower grain hulling with simultaneous shaking and winnowing a part of fibres and hull, for corn crushing to select germinable seeds. Rotor operating surfaces and huller decks are made of high-duty chilled cast iron. To hull other cereals the operating deck surfaces may be made of abrasive or polymer materials.

Specifications:

Parameter ЦШС-3
1. Capacity, t/hour 1,2 ÷ 2,5
2. Performance:
     - hulling factor, % 90 - 94
     - whole kernel factor, % 0,95
3. Rotor speed rate, RPM (с-1) 1 500
4. Rotor diameter, mm 500
5. Deck diameter, mm 550
6. Aspiration air flow, max, m3/hour 1 000
7. Installed power, kW
     - rotor drive 7,5
     - deck drive 1,1
8. Power line voltage, V 380
9. Dimensions, mm:
     - length 1 400
     - width 750
     - height 1 650
10. Weight, kg 560

Now all Oats dehullers are “twin brothers”. The best of them provide productivity by 1500 kg/h and have dehuller ratio about 70-75% for two fractions. After Oats dehullers there is long technological chain stand in line, for example, air separators, table separators etc.

Our Impact dehuller СІМО ЦШС-3 used at many countries for several years. And we confirm that capacity of iur dehuller is about 1650 kg/h and dehuller ratio is 90-93%. Output of finish product (oat cereal) is 60-64% depending on the raw grain. Besides dehulling, Impact dehuller removes epidermis (60-70%) with husk partly (40 - 50 %) and move them into the aspiration. Therefore, Impact dehuller works like air separator. It help to reduce technological chain.

The results of testing the Impact Dehuller СІМО ЦШС-3 on castor bean:
