Screw conveyor KS

Screw conveyor is designed for horizontal or inclined transportation of bulk product (it's perhaps to move in vertical surface, but not so often).

Find out the price Download Catalog

Purpose:

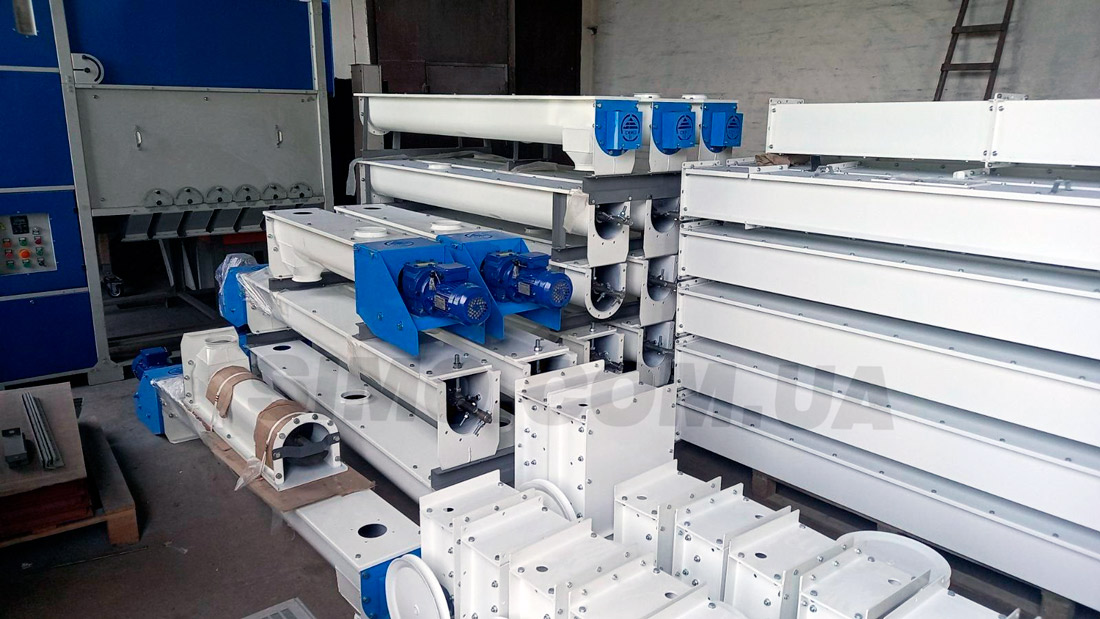

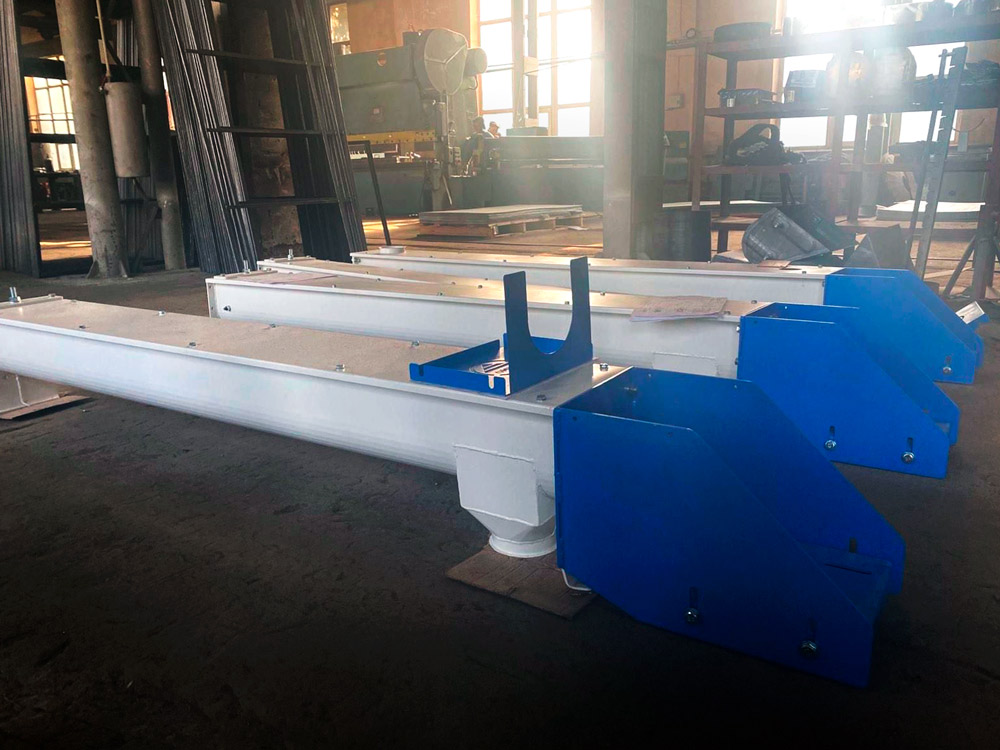

Screw conveyor KS consists of metal closed gutter and pipe which has rotating roller with blades inside. The blades are on screw line. The gutter can be made with hatches. The conveyor is completed with easy-removable tight covers of gutter. It lets the service be the most comfortable.

Screw conveyor is designed for horizontal or inclined transportation of bulk product (it's perhaps to move in vertical surface, but not so often).

Technical characteristics:

Name: KS-140 KS-160 KS-200 KS-250 KS-315 KS-400
Screw diameter, mm 140 160 200 250 315 400
Screw step, mm 140 160 200 250 315 400
Rotation speed, RPM 71 90 112 140 71 90 112 140 71 90 112 140 71 90 112 140 71 90 112 140 71 90 112 140
Productivity of graine* (if humidity is 17 %), t/h 2,5 3,5 4,5 5,5 3 4 5 6,5 6,5 8 10 13 12,5 16 20 25 26 34 42 53 50 60,5 80 100
Conveyor length max.**, m 20 20 20 20 20 20
Installed drive power, kW, max:
- length up to 10m 0,55 0,55 0,75 0,75 1,1 1,1 1,5 2,2 1,1 1,1 1,5 2,2 1,5 2,2 3,0 4,0 3,0 3,0 5,5 7,5 5,5 7,5 7,5 11,0
- 10 - 20 m 0,75 1,1 1,5 2,2 2,2 2,2 3,0 4,0 2,2 2,2 3,0 4,0 3,0 4,0 5,5 7,5 5,5 5,5 11,0 15,0 11,0 15,0 15,0 18,0
Conveyor width (without drive) max., mm 240 260 300 360 435 535

Note:

*Bulk density is 0,75 t/m3.

**If the length is 20 m, the chart characteristics could be changed.

Blades can be solid for bulk products with good flowability. Also the blades can be assembled as paddles. This construction is for sticky materials./p>

External drive and limit bearings.

Inserts of suspended bearing made by caprolon. These bearings don't need periodic lubrication.

Screw transporters have standard diameters 160, 200, 250, 315, 400 mm.
