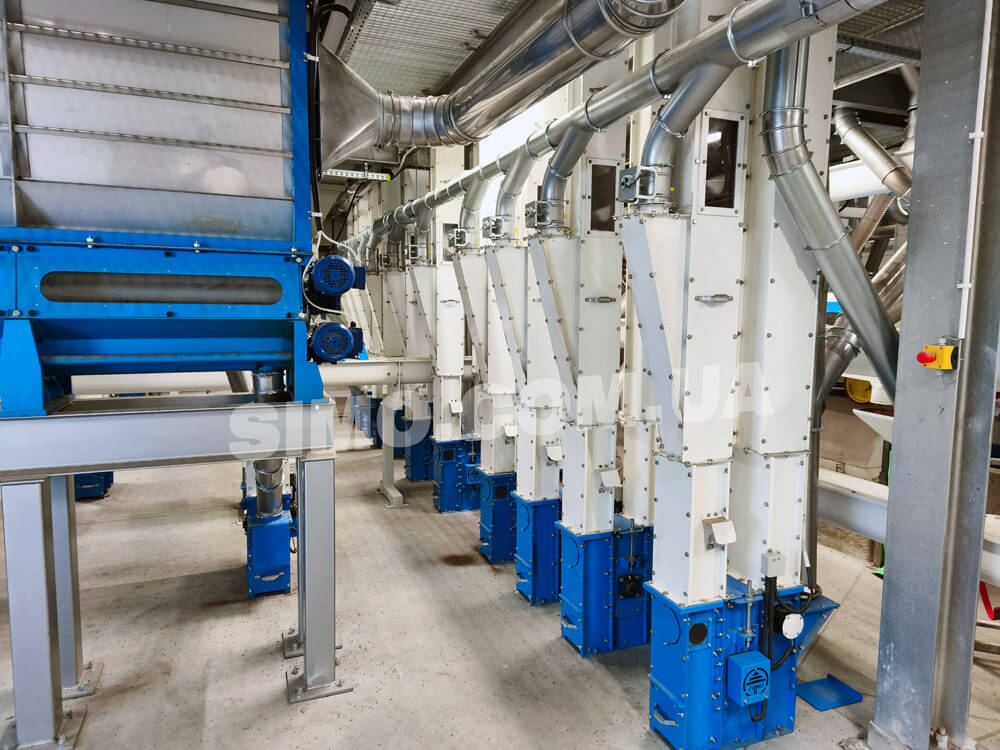

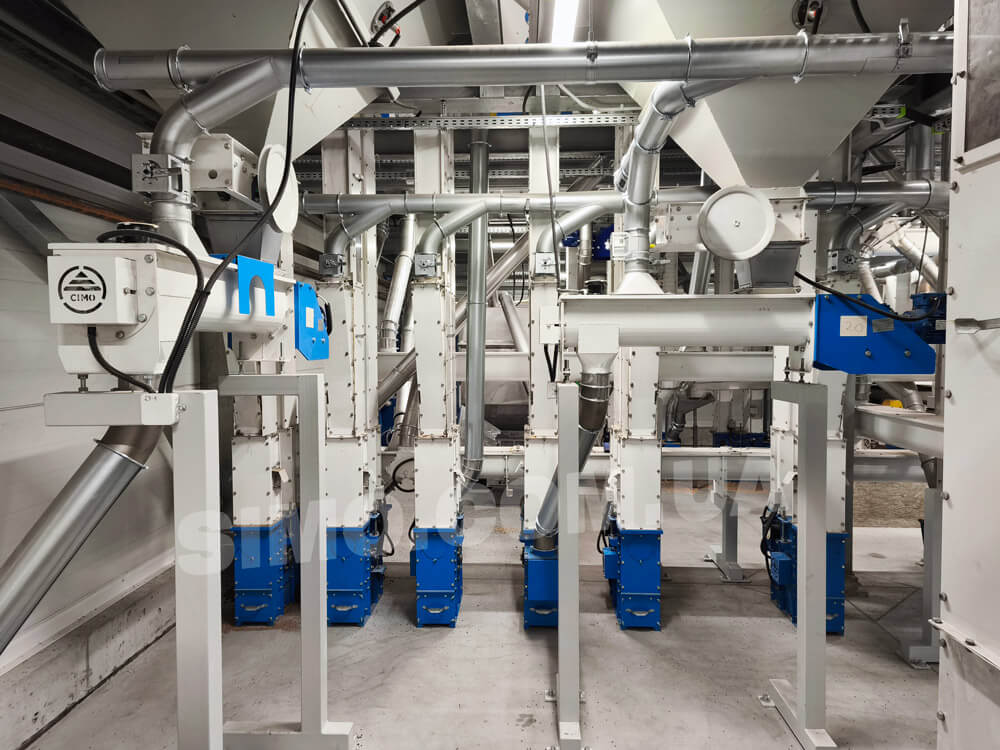

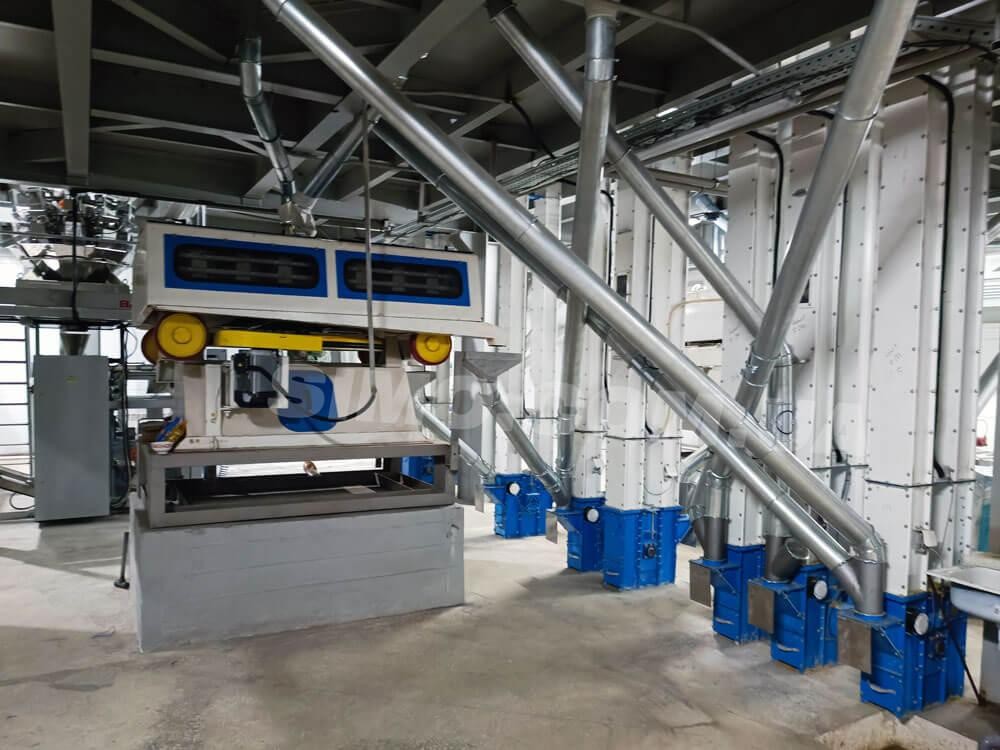

Bucket elevator

Bucket elevators are designed for operating within the process flow with the continuous indoor or outdoor mode for vertical transportation of grains and their products at elevators, flour mills, feedstuff and other grain processing facilities.

Purpose of equipment:

Bucket elevator are designed for operating within the process flow with the continuous indoor or outdoor mode for vertical transportation of grains and their products at elevators, flour mills, feedstuff and other grain processing facilities.

Parameter N-5 N-5х2 N-10 N-10х2 N-20 N-50 N-100
1. Grain capacity, t/h 5 10 10 20 20 50 100
2. Belt speed operating grains, m/s 1,4 1,4 1,6 1,6 1,6 2,2 2,2
3. Drum width, mm 125 125 150 150 175 200 300
4. Bucket spacing, mm 210 210 260 260 260 160 170
5. Outer dimension of pipe cross-section, mm 160 х 160 160 х 317 200 х 200 200 х 200 236 х 236 280 х 280 260 х 376
6. Drum diameter, mm 215 215 400 400 500 630 750
7. Drum length, mm 135 135 170 170 200 220 320
8. Drive power, kW:
     - height up to 30m 1,1 1,5 1,5 3,0 3,0 5,5 11,0
     - height over 30m 1,5 2,2 2,2 4,0 4,0 7,5 15,0
9. Dimensions, mm:
     - length 1 008 1 008 1 117 1 117 1 304 1 736 2 150
     - width 400 520 450 865 546 1 503 1 250 - 1 400
     - height 2 178 2 178 2 458 2 458 2 570 1 338 1 663
10. Aspiration air volume, m3/hour 350 700 400 800 400 500 700

Design and operation principle:

Grain through gravity pipes moves into inlet nozzle of bucket elevator. Then then picked up by buckets and lifted to a set height of the elevator top. Buckets discharge grain due to centrifugal acceleration. Afterwards, grain through gravity pipes goes to in accordance to the technological scheme.

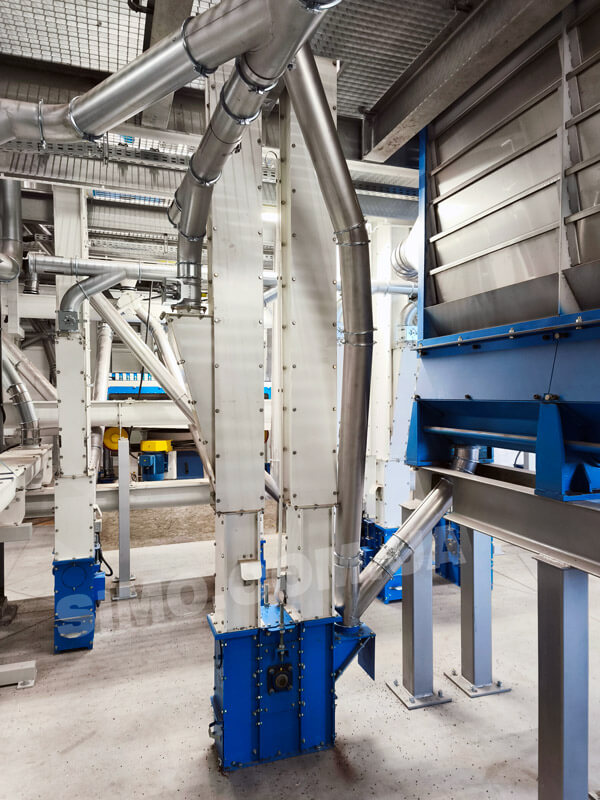

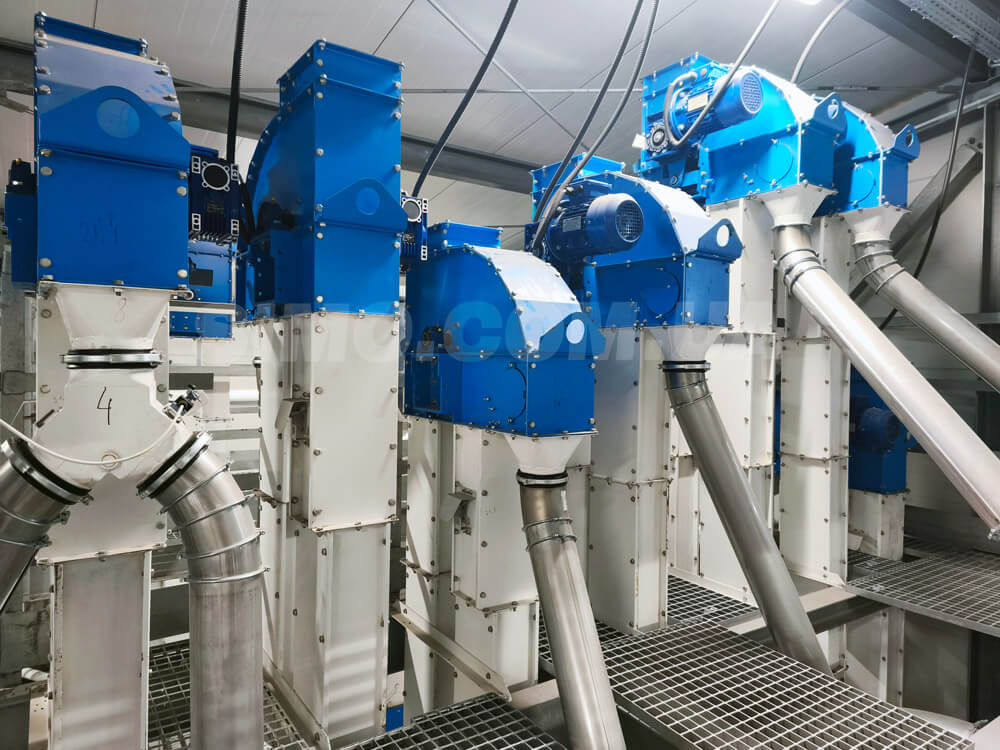

Bucket elevator consists of: shoe (1), head (top) (2), smooth elevator pipes (3 and 4), tension elevator pipe with inspection hatch (6), pipes for pipes for installation of overpressure sensors and belt control sensors (7), pipes with aspiration nozzle (8), two pipes for installation of explosive discharging device (9) (if customer require), pipes for belt control sensors (11). Belt with working bod (bucket) like tractive effort.

Elevator shoe consists of weld casing and drum. Roller with drum installed in bearings body. Rollers looks like movable parts of screw tension device. There is sensor on the shoe roller for speed control and bucket belt rip control.
