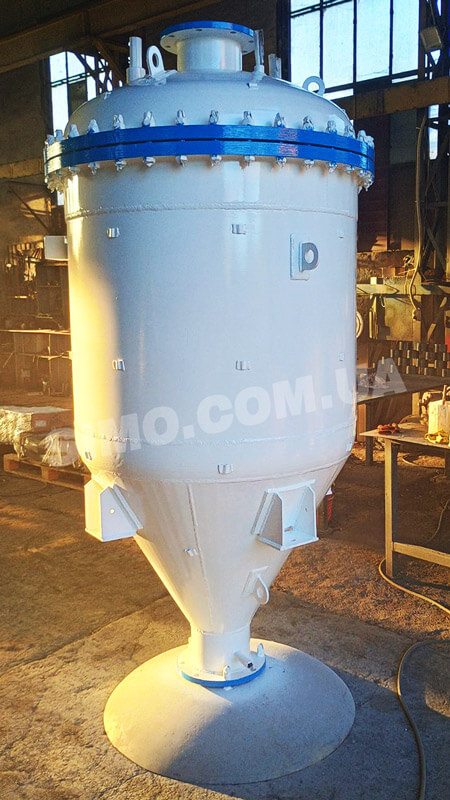

Steamer ПЗ-1

Steamer ПЗ-1 is designed for cereal crops hydrothermal treatment to improve grain process properties and useful qualities of the finished product

Find out the price Download Catalog

Purpose of equipment:

Steamer ПЗ-1 is designed for cereal crops hydrothermal treatment to improve grain process properties and useful qualities of the finished product.

Application area is cereal mills. It designed for steaming and drying of grain, for flakes processing, for cereal (no cooking) processing. It also use at feed mills for feedstuff processing.

Steamer ПЗ-1 includes equipment set for hydrothermal treatment of grain in order to improve the technological properties of grain and increase the consumer properties of the finished product. This machine also includes necessary pressure equipment, as well as pneumatic and additional equipment.

Specifications:

Parameter: V = 1,3 V = 1,0 V = 0,5
1. Volume, m3:
     - full 1,3 1,0 0,5
     - load 1,15 0,85 0,4
2. Working pressure, MPa (kgf/cm2): 0,3 - 0,5 (3-5) 0,3 - 0,5 (3-5) 0,3 - 0,5 (3-5)
3. Design pressure, MPa (kgf/cm2): 0,8 (8) 0,8 (8) 0,8 (8)
4. Test pressure, MPa (kgf/cm2): 0,85 (8,5) 0,85 (8,5) 0,85 (8,5)
5. Pneumatic air control pressure, MPa (kgf/cm2): 0,6 (6,0) 0,6 (6,0) 0,6 (6,0)
6. Description of supply mains, V/Hz: 220, 50 Гц 220, 50 Гц 220, 50 Гц
7. Material of the parts in contact with the product: Stainless steel 12Х18Н10Т Stainless steel 12Х18Н10Т Stainless steel 12Х18Н10Т
8. Dimensions, mm:
     - length 1 734 1 734 1 734
     - width 1 130 1 130 1 130
     - height 2 917 2 617 2 017
9. Weight, kg: 936 936 936
