Flaking mill ПС-400

The flaking mill is designed to flatten cereals and hulled grains while manufacturing oatmeal, buckwheat, pearl barley, finely ground barley, corn, wheat, rice and other flakes. The specific features of this machine operation include cooled rolls, enabling to create optimal flattening conditions for the product to be flattened.

Purpose:

The flaking mill is designed to flatten cereals and hulled grains while manufacturing oatmeal, buckwheat, pearl barley, finely ground barley, corn, wheat, rice and other flakes. The specific features of this machine operation include cooled rolls, enabling to create optimal flattening conditions for the product to be flattened.

Specifications:

Parameter ПС-400
1. Flakes production capacity, kg/hour 600-800
1.1 Productivity (for feed flakes), kg/hour 1 400 - 1 600
2. Diameter, mm:
     - working rolls 400
     - feeding roller 122
3. Length, mm:
     - working rolls 600
     - feeding roller 600
4. Installed power, kW, max:
     - working rolls 22
     - feeding roller 0,55
5. De-aeration volume, m3/hour 700
6. Dimensions, mm:

     - length 1 100
     - width 1 100
     - height 1 300
7. Weight, kg 1 800

One of the our business direction is modernization of technological equipment for processing of cereal (no cooked), flakes, breakfast cereals etc. Lately our company has designed new line of machines, for example, this simplified kind of Flaking mill.

Structure And Working Process of Flaking mill ПС-400:

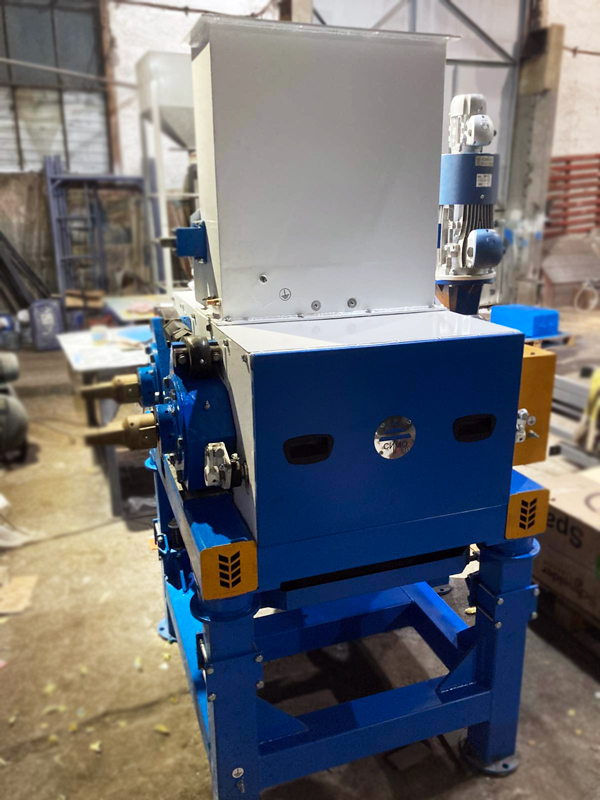

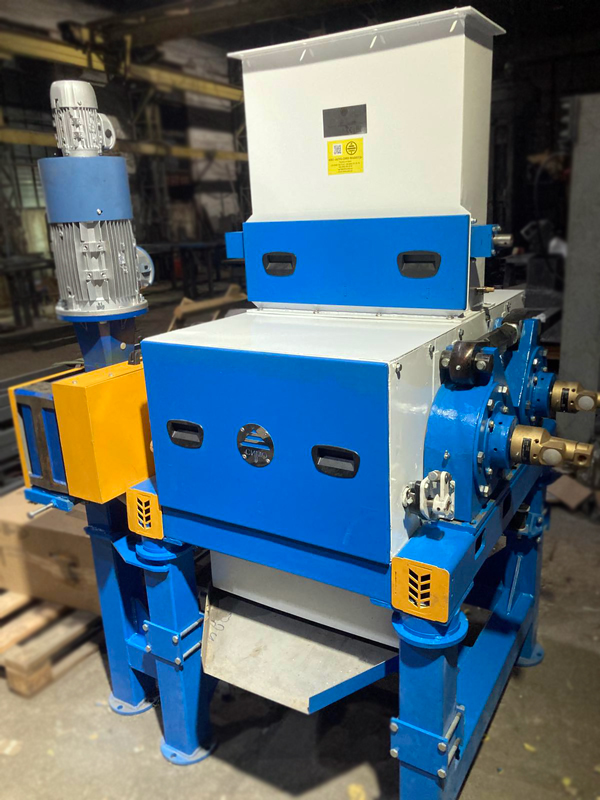

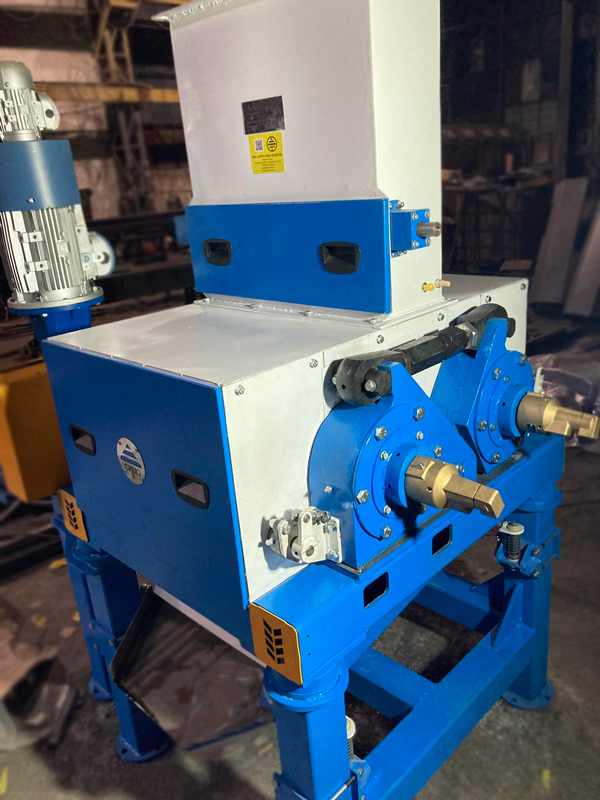

General view of Flaking mill ПС-400. It`s machine with horizontal roller location for grain flaking. The machine consists of frame, roller set, mechanisms of working gap adjustment, housing, feeder, devices of roller cleaning, roller drives, control panel, devices of roller cooling, outputting device, belt drive fencing.

Mechanisms of working gap adjustment. In new construction SIC “AGRO-SIMO-MASHBUD” modernized this device. Therefore significantly reduced the cost of the machine and improved service conditions. There is also a mechanism for manual wheel alignment of the movable roller, which located on the basic adjusting eccentric. This eccentric also works like a fuse if the foreign objects (stones, metal) fall into gap between rollers. Static and movable rollers located on the frame. It should be note that diameter of rollers is 400 mm. The use of high-quality bearings and dynamic balancing of the rollers also contributes to the rigid adherence to the working inter-roll gap. It`s important to know about greater durability of roller working surfaces. The roller made by double layer centrifugal casting. Y the way, working layer is from special cast iron with uniform hardness. There are mechanisms of working gap adjustment on the bearing levels of the movable roller.

Device of roller cleaning. There are knives with the possibility of adjusting the gap between the edge of the blade and the surface of the roller for cleaning of roller working surface. Rollers and this mechanisms covered by casing on the frame.
